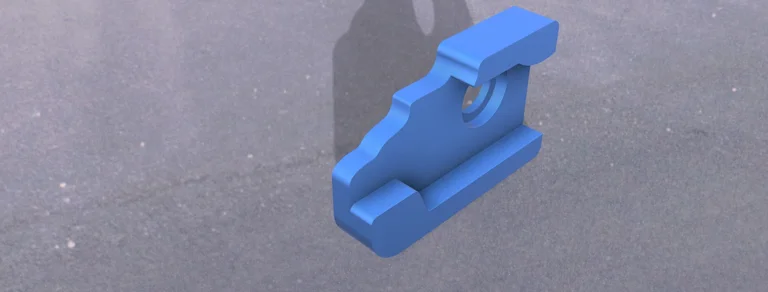

Trigger cut jig for 3 position AKSS/ AK FRT

@Sticky Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International 27.6MiB Updated June 12, 2025, 6:28 PM Released June 11, 2025, 7:43 PM 0.001LBC 3 Reposts
READ THE README

Consider this beta due to all the variants and multiple configurations available.

This is a trigger cut jig to use with S3igu2's AKSS along with a FA disconnector and selector for 3 position operation: SAFE, SS, SA. This is not drop and will take some time to get fitted.

THIS PROCESS IS MORE A HOW TO, NOT A PRINT AND DROP IN THE IMPORTANT INFO IS HERE, IN THE README, AND ON THE VIDEO POSTED TO MY CHANNEL HERE


6/21: added video with more information

10/2/25
to answer questions I keep getting asked:
Trim slow, and remember the jig is just a guide. I don't even use it.

Trim a little, test a lot.

You should have your trip bar and cam working normally before trying to get it 3 position. You're just wasting time if there's is a problem with the trip bar or cam. Step one on any current AKSS install is too make sure the trip bar moves freely and that the cam doesn't bind the carrier.

When you're tuning the trigger cut for 3 position do your testing in the semi mode, not the SS mode. Watch how much reset you have while the hammer is being held by the disconnector, and trim the trigger until there is not enough reset for the disconnector to release the hammer back to the trigger hook.



Tags:
AK
FRT
beta
metal working
intermediate -advanced skills required
