M70-AR Buffer Extension Adaptor: Laffs Dynamics

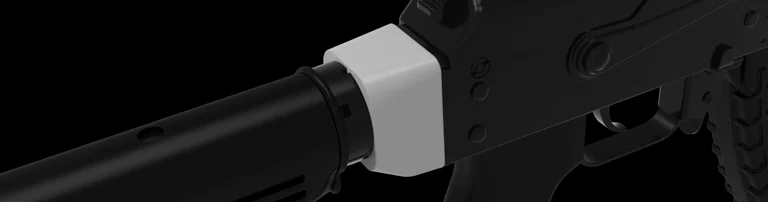

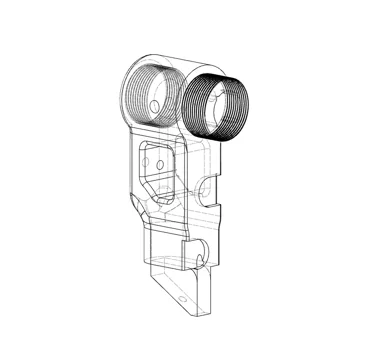

A single part mount for the Zastava M70 AK, designed for the adapted usage of AR-15/M4 buffer extensions to attach
compatible buttstocks.
Two variants are available:
Standard Height
+4mm Height
Printer Used: Ender 3 V2
Filament Used: PLA+
Print Settings:
Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 7+
Infill: 25%+
Material Flow: 100%
Support Material Percentage: 16%
Hardware Needed:
1x M8x30 Bolt, 1mm fine thread pitch (NOT 1.25mm)
1x M8 Washer, 15mm OD (Optional)
2x M4x8mm Set Screw
Accreditations:
ProSpaceDog/Space Dog Industries: Provided model dimensions of buffer extension threads and failure point data on their original
design.
LBRY Tags: 3d printing; ak; ar-15; firearms; yugo

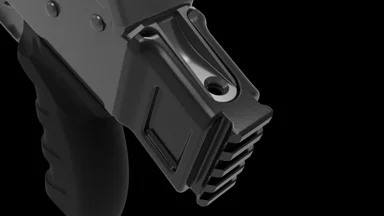

AKM Picatinny Buttstock Adaptor (Gen 1)

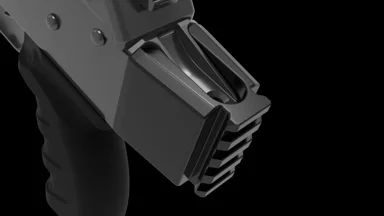

AKM Picatinny Buttstock Adaptor (Gen 2)

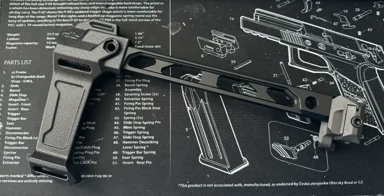

Cobray 37mm Mount Gripstick
