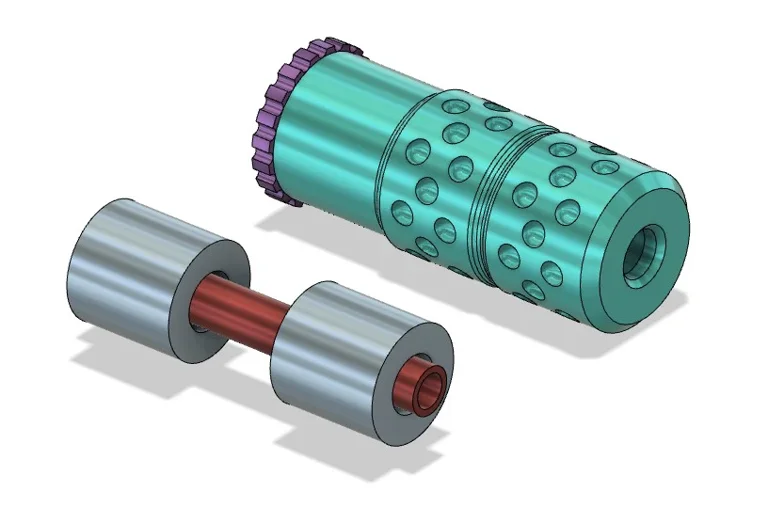

The Mini MK23 (MocK 23) is one of a series of these barrel extenders to come. This extension allows the end user to create any one of several available 3d printable pistols that utilize a 5/16" external diameter 22lr barrel liner and have additional barrel length to insert metal spacers for UFA compliance. In order to be UFA compliant the resulting firearm must have 3.7oz minimum of ferrous metal and many small printable firearms need to be assembled with a metal weight as part of the frame.
This extension is based cosmetically on the Knights Armament Company suppressor for the MK23. Many KAC products are dimpled for rigidity or weight savings and it is appealing cosmetically.
The extension is not made for any particular printed firearm and is 'generic' in the sense that it will fit any firearm that uses the barrel liner specified.
To make this work, leave the barrel liner an additional 2.5" beyond the end of the firearms original barrel. Glue the rear cap in place, and insert 3 of the 0.75" OD, 0.75" length, 3/8" ID spacers into the main body, then epoxy this over the remaining barrel. It is now as permanent as any other part of the firearm. Steel bbs or other scrap or alternative filler can be used so long as they are ferrous, and weight of any glue or the extension itself is not included in measurements.
This part is not intended to be used as a suppressor and this part does not have threads or provisions making it possible to remove once installed.
LBRY Tags: stubbs; printed; 22lr; barrel; gun
This extension is based cosmetically on the Knights Armament Company suppressor for the MK23. Many KAC products are dimpled for rigidity or weight savings and it is appealing cosmetically.
The extension is not made for any particular printed firearm and is 'generic' in the sense that it will fit any firearm that uses the barrel liner specified.
To make this work, leave the barrel liner an additional 2.5" beyond the end of the firearms original barrel. Glue the rear cap in place, and insert 3 of the 0.75" OD, 0.75" length, 3/8" ID spacers into the main body, then epoxy this over the remaining barrel. It is now as permanent as any other part of the firearm. Steel bbs or other scrap or alternative filler can be used so long as they are ferrous, and weight of any glue or the extension itself is not included in measurements.
This part is not intended to be used as a suppressor and this part does not have threads or provisions making it possible to remove once installed.
LBRY Tags: stubbs; printed; 22lr; barrel; gun
Related to This Release
647
15
UFA Compliance Barrel Extender for Harlot
This barrel extension is a reskin for the MK23 style generic model that allows you to place metal spacers or weight to the front of a Harlot 3d print…
118
2
RUGER 10/22 BARREL BAND FOR CARBINE
No description provided for this release
LBRY Tags: ruger; 10/22; barrel band; firearm accessories; rifle
1335
14
1
HubTN.4 - 22lr V13, open beta (v8)
Open beta for a couple 22lr variants in the HubTN.4 series. The first version was only made for use with 3/4x16 thread adapters and used 6 baffles. I…
444
14
Gee What M4 Pistol Brace -Stubbs
The "Gee What" pistol brace is a collapsible blade style pistol brace based on my earlier CAR15 brace, but updated to resembled the 6 position M4 sto…
317
18

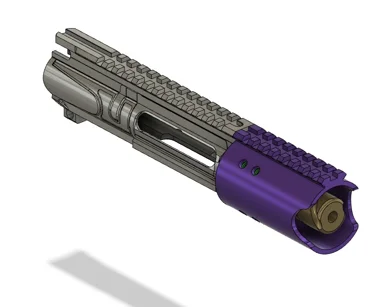

1.75" ID Prototype Handguard for 4" OAL Barrel 22lr
