Laffs PDW XL Sights: Laffs Dynamics

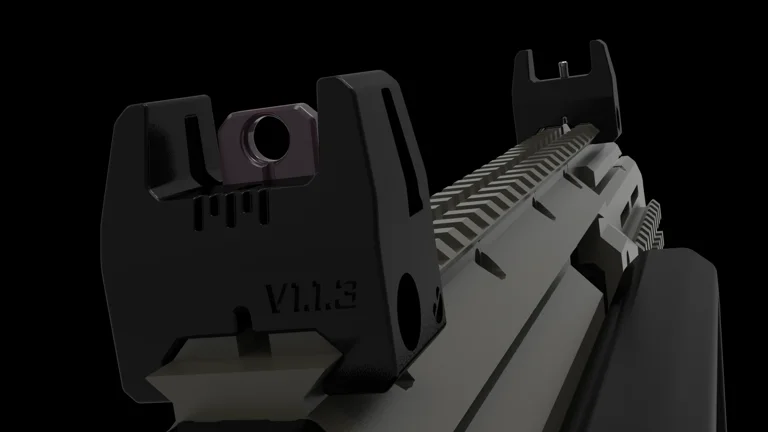

Taller variant of the original 3FTech/Laffs PDW Sights.

Have gotten numerous requests for a taller version over last couple years.

Raised it up 8mm. Still uses previous version's swappable rear sight inserts and same set screw for the front sight post.

Three rear drift sights are available:

*4mm U Notch
*5mm U Notch
*5.5mm Aperture

Note: For those people that wanted it "AR" height... no :D

I aint raising them up 30mm+. They'd be bulky as fuck and they're meant for guns like the Scorpion Evo 3, PS90, GHM9, and Stribog SP9. These sights
are not precise enough for carbine use in my opinion, and I don't wanna hear people complain about accuracy if I made such a variant. They're fine for
PDW/SMG/PCC usage.

Original Laffs PDW Sights files can be found on Odysee:

Link: https://odysee.com/@FFFTech:3/3FTech-PDW-Sights:5

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .12mm
Wall Thickness: .40mm
Wall Perimeters: 6+
Infill: 50%+
Support Material Percentage: 20%

Print the front and rear sight mounts on their front faces, and the rear sight drift on it's rear, flattest face.

Hardware Needed:

2x M5x30 Hex Socketed Machine Screw/Bolt

2x M5 Hex Nut (Be sure both bolt & nut are the same thread pitch.)

1x M3x10 Set Screw
