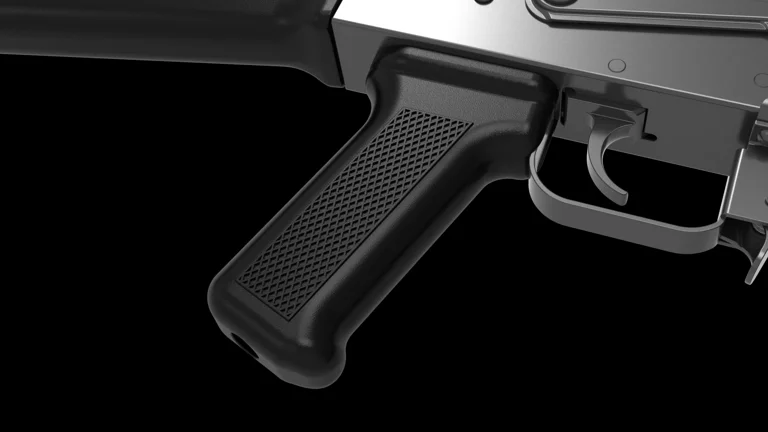

The Classic AKM Grip: Laffs Dynamics

Externally mimics the look and feel of common AKM grips; modeled off of the common Romanian reverse checkered pattern.

Internally differs from the OEM grip geometry, has thickened walls for greater durability than if the design was cloned exactly to original grip specs.



Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 218C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 6+
Infill: 50%+
Support Material Percentage: 18%

Print the grip upside down



Hardware Needed:

1x OEM AK Grip Screw



Credits:

ProSpaceDog: Used multiple grips for reference, specifically modeled the 3DP design from Romanian "reverse checkered" pattern AKM grips.
