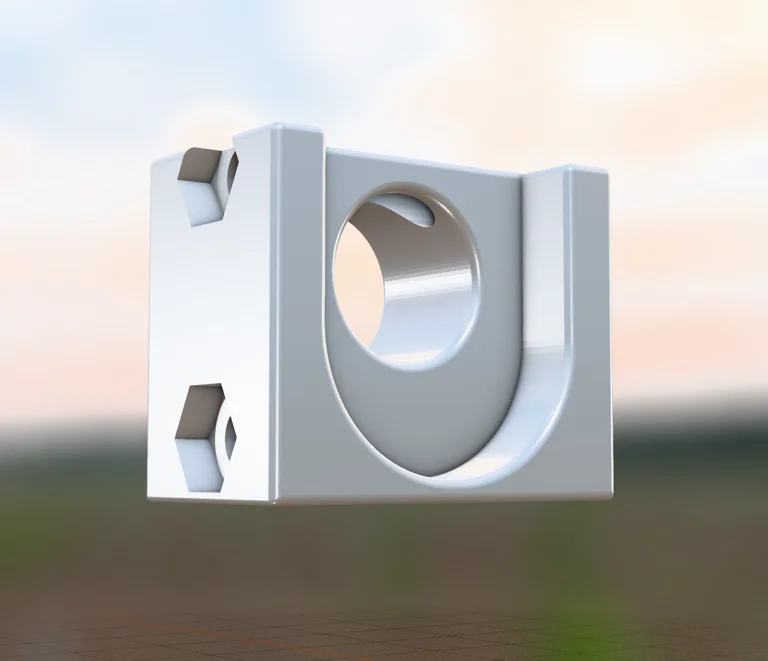

CTRL+Z(HUKOV) Printable AK Lower Handguard Retainer

h* // haymarket customs @HaymarketCustoms:e
Details
Released Indexed 5.2MiB Creative Commons Attribution 4.0 International Automatically verified

Printable AK Lower Handguard Retainer

Did you take an angle grinder to your lower handguard retainer so you could
install a m*gpul zhukov handguard on your AK and now you wanna use a normal
lower handguard but you don't have a shop press or the part?

Yeah me neither... but if I did this seems like it might come in handy.

printing

  • Material: PA6-GF
  • Nozzle: 270-290
  • Bed: 100
  • Supports: none

3MF file is oriented correctly.

materials

  • 2x M6-40 screws
  • 2x M6 nuts

finishing

Slide your handguard into the receiver and clamp the two side of the retainer
around the front lining up the top screwhole with the notch in the barrel.
Press nuts into place on the left side and screw until tight.

license

whatever girlypop CC-BY? i'm not a cop tho

LBRY Tags: 3d2a; ak; accessory; furniture; fosscad

Furniture
Rifle
CC-BY
Commercial
Remixable
Sharable
AK
Accessory
Files
Explore this release's contents 16 entries
This is a preview for indexing purposes only -- you must acquire this release directly from one of its sources to receive any of this content. GunCAD Index does not distribute gun design files or documents.
    • CTRL+Z(HUKOV) +7
      • 3MF +1
        • CTRL-Z(HUKOV).3mf 709.8KiB
      • FCSTD +2
        • CTRL-Z(HUKOV).20260714-104101.FCBak 927.1KiB
        • CTRL-Z(HUKOV).FCStd 919.8KiB
      • JPG +1
        • Fitted.jpg 131.6KiB
      • PNG +2
        • CTRL-Z(HUKOV).png 1.4MiB
        • Print orientation.png 45.8KiB
      • STEP +1
        • CTRL-Z(HUKOV).step 244.5KiB
      • STL +1
        • CTRL-Z(HUKOV).stl 2.8MiB
      • README.md 776B
Related

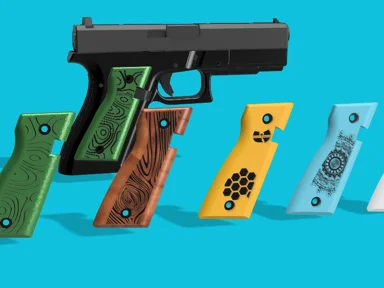

Pla_ak_ak_ak Py2a 1711 GunCAD Index Seal of Approval

Pla_ak_ak_ak Py2a 1711

413
•
Handgun, Glock 17, Frame/Receiver, 9x19mm, Glock
pla_ak_ak_ak
pla_ak_ak_ak
Odysee
AKVSD GunCAD Index Seal of Approval

AKVSD

309
•
Furniture, Handguard, PCC, Rifle, AK, MP5, Accessory, 9x19mm, H&K
Casting and 3d2A
Casting and 3d2A
Odysee
Updated

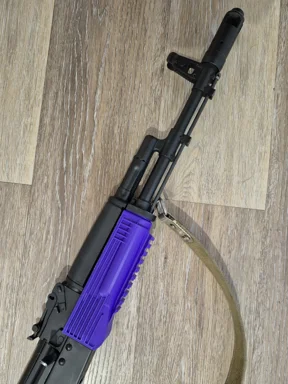

AK RAILED HANDGUARD

AK RAILED HANDGUARD

375
•
Furniture, Handguard, Rifle, AK, Accessory
Devin White
Devin White
Odysee
Updated

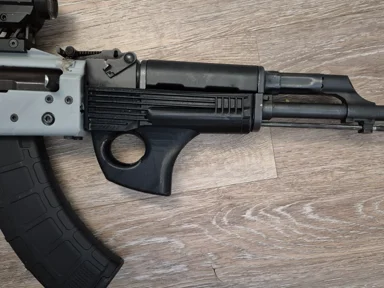

AK Thumbhole Lower Handguard
