Talon Swarm M-Lok Mini AFG

Laffs Dynamics Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International 2.5MiB Released December 17, 2022, 9:13 PM

View this release Odysee LBRY Desktop

Foregrip Furniture CC-BY-NC-ND Sharable Accessory

Talon Swarm M-Lok Mini AFG: Laffs Dynamics

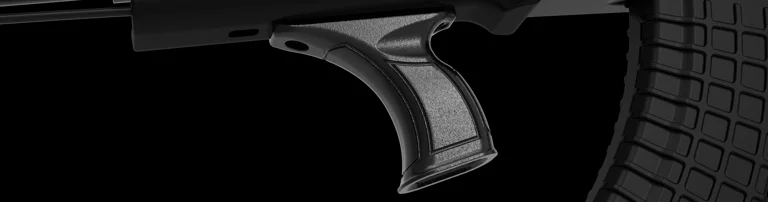

An angled foregrip; small in size, concave in shape. Has thumb cuts and a swelled palm section.

Has a flaired grip base, and is padded on the sides, front, and back sections of the grip. The
original version requested by SwarmTech under contract.

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .2mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 5+
Infill: 28%
Support Material Percentage: 30%

Print the grip upside down.

Hardware Required:

2x M5x10 Hex Socketed Machine Screw/Bolt

2x M-Lok T-Nuts (Be sure both bolt & nut are the same thread pitch.)

Accreditations:

Swarmtech: Requested this design creation. Gave aesthetic opinions. Provided design parameters for overall size.

LBRY Tags: 3d printing; firearms; mini; afg; mlok
