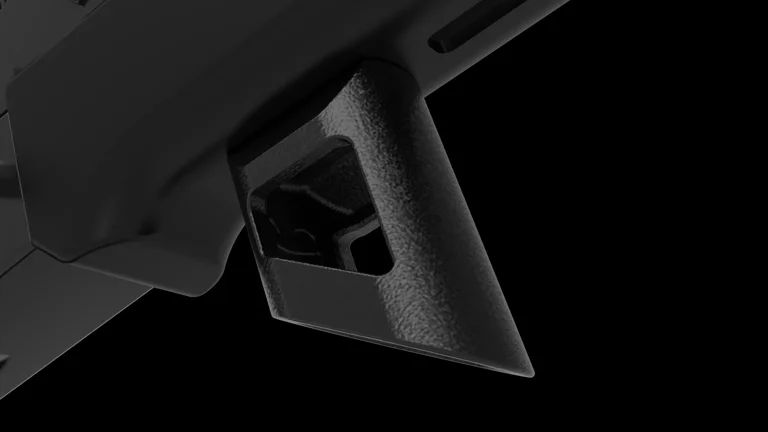

Zenitcopy 3D-6L Skeletonized M-Lok Handstop V1.1: Laffs
Variant of the original Laffs Dynamics Zenitcopy 3D-6L handstop. (Itself being a copy of the Zenitco RK-6L)
Skeletonized for max style points, and for that .01oz weight savings you just HAD to have...
Update V1.1: Thickened inside walls by 1mm, (Including lower skeletonized struts.) reduced designer's logo size, shortened M-Lok interface by .25mm.
Printer Used: Ender 3 V2
Filament Used: PLA+
Print Settings:
Extruder: 218C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .12mm
Wall Thickness: .40
Wall Perimeters: 7+
Infill: 50%+
Support Material Percentage: 18%
Hardware Needed:
1x M5x10 Hex Socketed Machine Screw/Bolt
1x M-Lok T-Nut (Be sure both bolt & nut are the same thread pitch.)
Original Zenticopy 3D-6L can be found here: https://odysee.com/@FFFTech:3/Zenitcopy-3D-6L:e
Tougher SLS Nylon Zenitcope 3D-6L can be purchased here: https://www.avesrails.com/Zenitcope-3D-6L-M-LOK-Handstop_p_89.html
LBRY Tags: 3d printing; firearms; copy; mlok; handstop; c:disable-slimes-comments; c:disable-slimes-video; c:disable-reactions-comments; c:disable-reactions-video
Variant of the original Laffs Dynamics Zenitcopy 3D-6L handstop. (Itself being a copy of the Zenitco RK-6L)
Skeletonized for max style points, and for that .01oz weight savings you just HAD to have...
Update V1.1: Thickened inside walls by 1mm, (Including lower skeletonized struts.) reduced designer's logo size, shortened M-Lok interface by .25mm.
Printer Used: Ender 3 V2
Filament Used: PLA+
Print Settings:
Extruder: 218C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .12mm
Wall Thickness: .40
Wall Perimeters: 7+
Infill: 50%+
Support Material Percentage: 18%
Hardware Needed:
1x M5x10 Hex Socketed Machine Screw/Bolt
1x M-Lok T-Nut (Be sure both bolt & nut are the same thread pitch.)
Original Zenticopy 3D-6L can be found here: https://odysee.com/@FFFTech:3/Zenitcopy-3D-6L:e
Tougher SLS Nylon Zenitcope 3D-6L can be purchased here: https://www.avesrails.com/Zenitcope-3D-6L-M-LOK-Handstop_p_89.html
LBRY Tags: 3d printing; firearms; copy; mlok; handstop; c:disable-slimes-comments; c:disable-slimes-video; c:disable-reactions-comments; c:disable-reactions-video
