LTP Padded Frame (Canik TP9): Laffs Dynamics

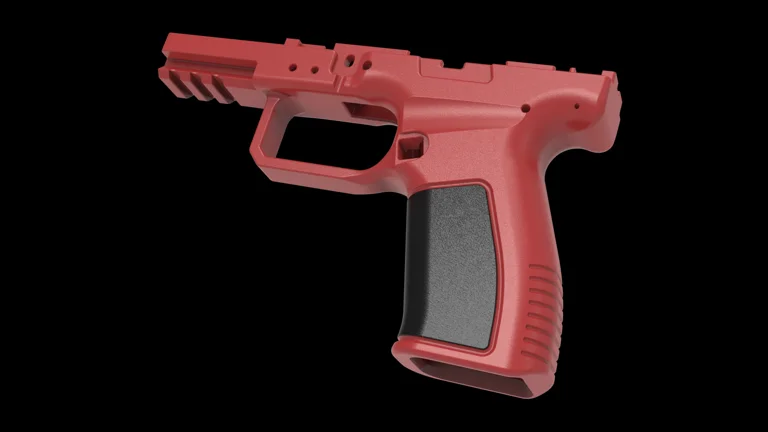

Variant of the Uberclay's Bozkurt pistol frame, a 3DP version of the Canik TP9 pistol. Mostly aesthetic changes.

Added material to the picatinny rail.
Squared off the front of the pic rail.
Scalloped the pic rail slots.
Elongated the trigger guard by 6mm. (Squeeze in some gloved fingies)
Added aesthetic "padding" on the front and sides of the grip section.
Added semi-wrapped ridging along the bottom half of the backstap.
*Added material to the rear of the frame.

Overall, this was more for my own purposes, but I decided to release this in case any weirdo wanted a similar look from the base frame.

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 218C
Bed: 56C
First Layer Print Height: .2mm
Standard Layer Height: .16mm
Wall Perimeters: 8+
Infill: 90%+
Infill Pattern: Gyroid
Support Material Percentage: 18%

Notes:

This file pack is for the frame only. Other printed part files will need to be downloaded from the base design release; link provided in the below text.

Base Bozkurt pistol frame files can be found on Odysee:

Odysee: https://odysee.com/@TheGatalog-PrintableFramesReceivers:9/The-Bozkurt-Canik-TP9:c

(Other print settings and the hardware list will be provided in the base data pack)

Accreditations:

Uberclay: Creator of the Bozkurt pistol frame; used the base frame model from their design release.
