Remington SPR-310 Hammer Spring Plunger Assembly Jig - Baikal MP-27 IZH-27

WmHerrin 4.0MiB Released April 27, 2025, 9:26 PM 1.900LBC 0 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Accessory

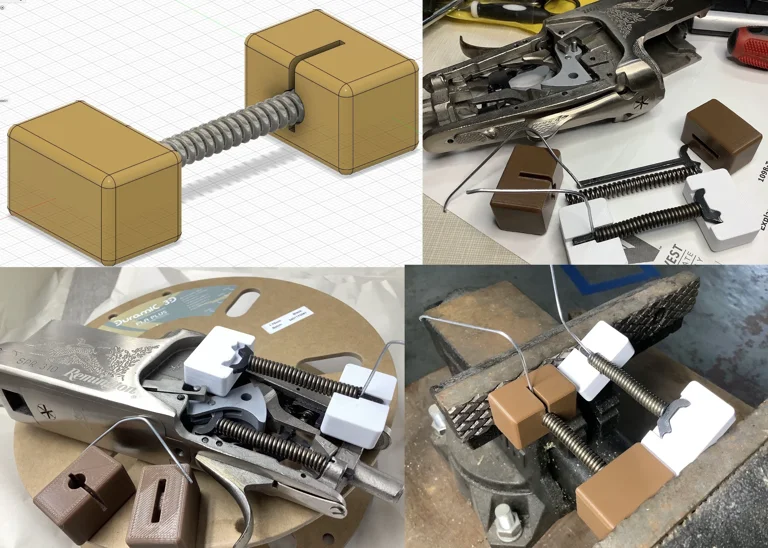

This zip file contains .STEP and .F3D files for a two-piece jig designed for use in a bench vise. The jig compresses the hammer spring, exposing the pin hole in the hammer spring plunger. This allows for the insertion of a pin to retain the compressed spring, making installation into the receiver easier. The design is modeled after a single example of a Remington SPR-310 12 Gauge O/U. While it is based on this specific model, the jig may also work with other models and bores, such as the Spartan 310 and Baikal MP-27/Izh-27.

PLA+
0.2 layers
15 to 25% gyroidal infill
5 walls
4 top
4 bottom
Import .STEP into slicer, split into objects, orientate the bodies so no supports are needed.

LBRY Tags: 2a3d; fosscad; remington; baikal; spring
