Raven AKM Grip

Laffs Dynamics Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International 4.6MiB Released May 18, 2022, 4:25 AM

View this release Odysee LBRY Desktop

Furniture Pistol Grip Rifle CC-BY-NC-SA Remixable Sharable AK Accessory

Raven AKM Grip: FFFTech/FFFTechnology

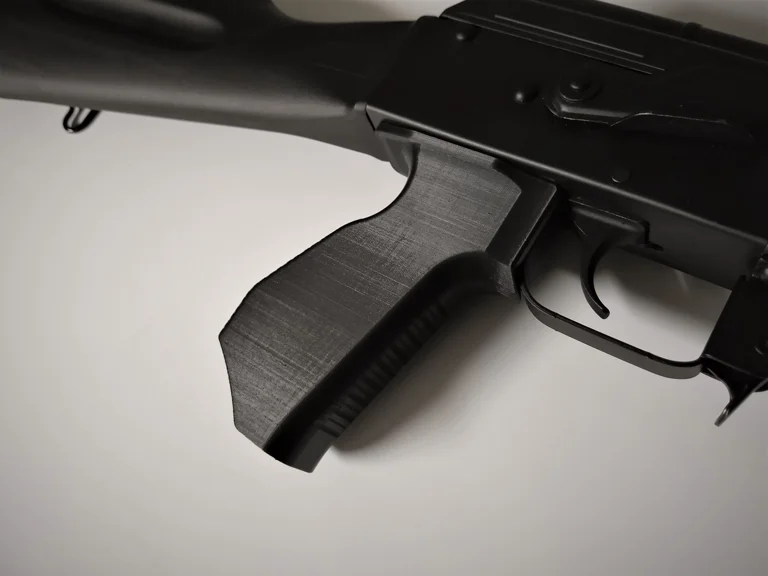

An AKM grip with a shallow rounded backstrap and frontal section.

A fairly wide grip, swells from 24.2mm, (Excluding grip top reinforcement) to 30.1mm towards the bottom. From front to back,
the longest point is roughly 52mm.

The top section's reinforcement is based off the AK12 and AK15 grip.

Comes in two variants:

Standard
Ridged

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .2mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 4+
Infill: 25%+
Infill Pattern: Gyroid
Material Flow: 100%

Print the grip upside down

Hardware Needed:

1x OEM AK Grip Screw
