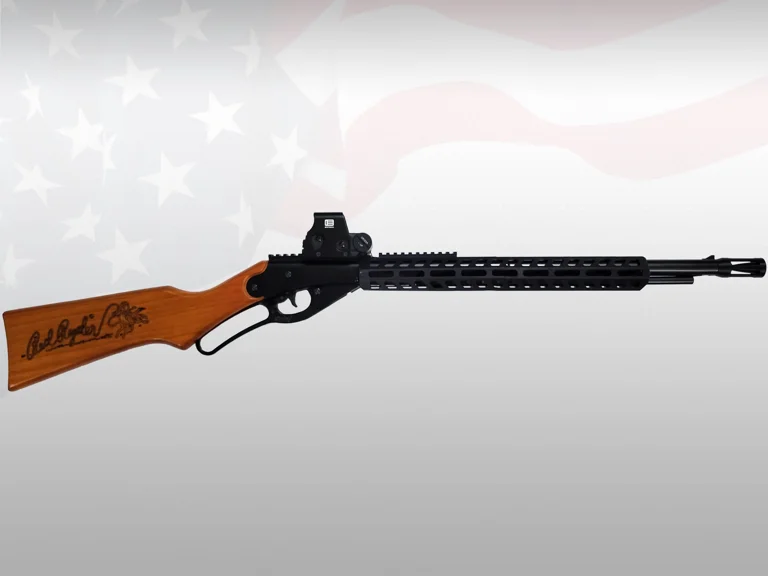

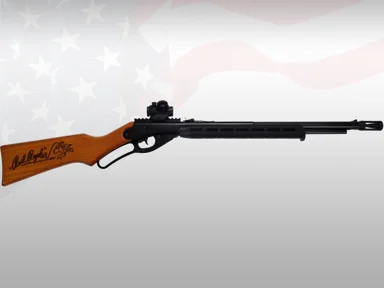

This is a M-LOK handguard for the Daisy Red Ryder air rifle. It is printed in two halves that dovetail together.

Features:

M-LOK slots along the sides and bottom for mounting accessories.
15 inches in length, providing plenty of customization space.
2 versions, one with and without a top picatinny rail.

Designed to install with no permanent modifications to your rifle.

Step 1: Remove the Original Handguard

If your handguard has a metal collar, slide it forward toward the muzzle and off the barrel.
Next, remove the Phillips screw from the bottom of the stock handguard.
The original handguard should slide off easily with no resistance.

Step 2: Remove the Front Sight

Before installing the handguard, the front sight must be removed.

The proper method is demonstrated in this video: Watch here

Step 3: Assemble the Handguard Halves

Align the two halves of the handguard at the dovetail. Ensure they are oriented properly.
Carefully slide the halves together until they are fully joined.

Step 4: Install the New Handguard

Slide the assembled handguard over the barrel.

Press down on the BB loading door if the handguard gets stuck on it.

Ensure the rear sight goes on top of the handguard.

Push it forward until it seats fully against the rifle body.
Reinsert the Phillips screw through the bottom of the handguard to secure it.
Reinstall the front sight.

The handguard might also fit an Umarex Marlin BB rifle, I do not have one to test fitment.
