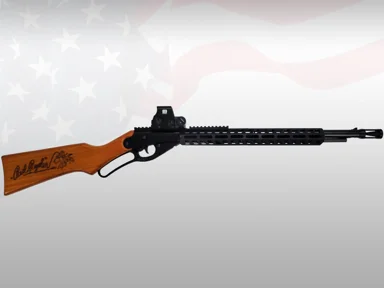

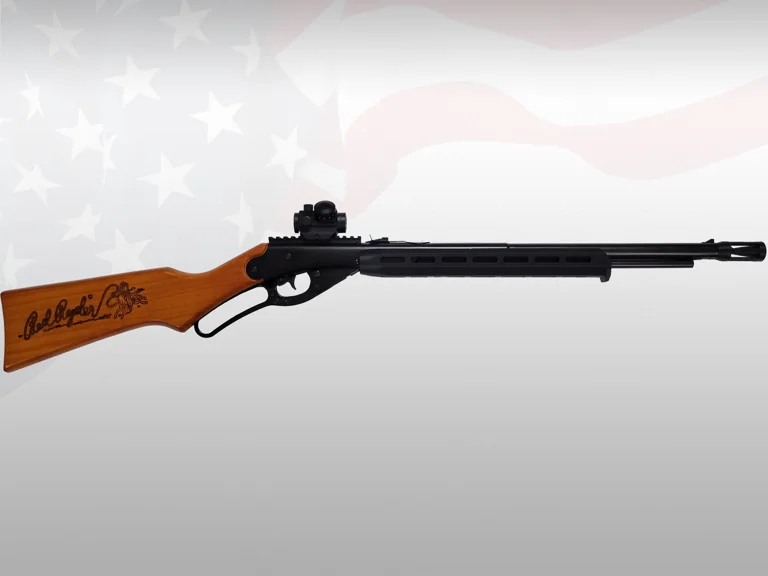

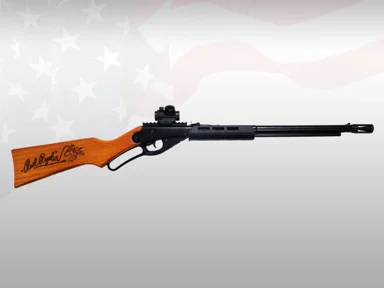

This is an extended length M-LOK handguard for the Daisy Red Ryder air rifle.

-M-LOK slots along the sides and bottom for mounting accessories.
-A full 13 inches of length, giving you a much larger grip area and more room to customize.

Designed to install with no permanent modifications to your rifle.

Installation Instructions

Make sure the airgun is unloaded
Engage the safety

Step 1: Assemble the Handguard

Connect the two halves of the handguard using the four included connector pieces.
Each half has four slots near the end—apply a drop of glue into each slot on both halves.
Insert the connectors into one side, then carefully align and slide the second half into place.
Allow the glue to fully cure before moving to the next step.

Step 2: Remove the Original Handguard

If your handguard has a metal collar, slide it forward toward the muzzle and off the barrel.
Next, remove the Phillips screw from the bottom of the stock handguard.
The original handguard should slide off easily with no resistance.

Step 3: Install the New Handguard

Position the new handguard on the rifle—it should snap into place and feel snug.
Slide it rearward toward the trigger to ensure a tight fit.
Reinsert the Phillips screw through the bottom of the handguard to secure it.

The handguard should also fit an Umarex Marlin BB rifle.
