Slipstream Grip (CZ Scorpion Evo 3)

Laffs Dynamics Creative Commons Attribution 4.0 International 7.0MiB Released February 10, 2022, 1:24 AM 0.001LBC 0 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Furniture CC-BY Remixable Sharable CZ Scorpion Accessory
Slipstream Grip (CZ Scorpion Evo 3): FFFTech/FFFTechnology

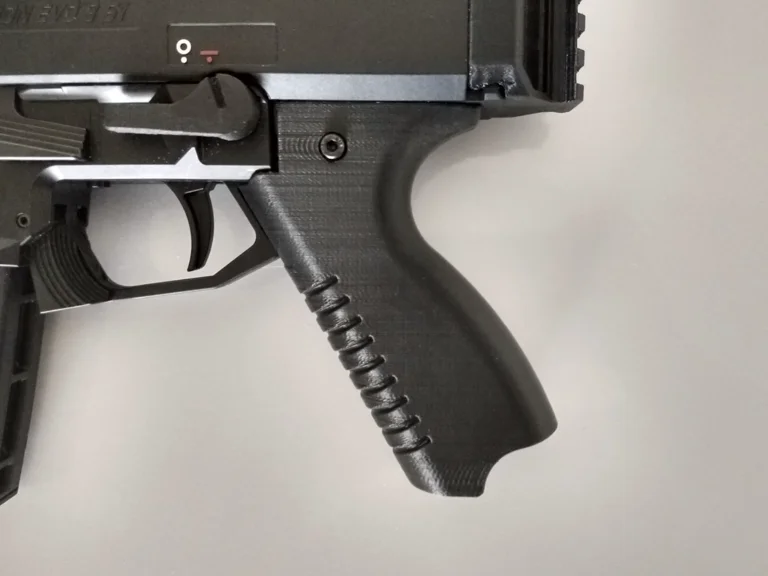

A swept back, rounded butt grip with a ridged texture that wraps around it's front portion. Inner to
outer wall thickness is 4mm, with a reinforcing rib down the inside frontal section for increased
strength.


Printer Used: Monoprice Maker Select Plus

Filament Used: PLA+

Print Settings:

Extruder: 218C
Bed: 54C
First Layer Print Height: .18mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 4 - 5
Infill: 25%
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 18%

Print the grip upside-down.


Hardware Required:

1x M4x30mm Bolt (Can be ground down to 28mm so it doesn't stick out the side)

1x M4 Hex Nut

LBRY Tags: 3d printing; firearms; grip; scorpion; cz
