EZ22 Barrel Nut Sleeve Test Prints

Wozjak - Archive 237.9KiB Released December 21, 2022, 4:08 AM 0.109LBC 0 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Furniture 22 Long Rifle Rifle AR-22 Accessory

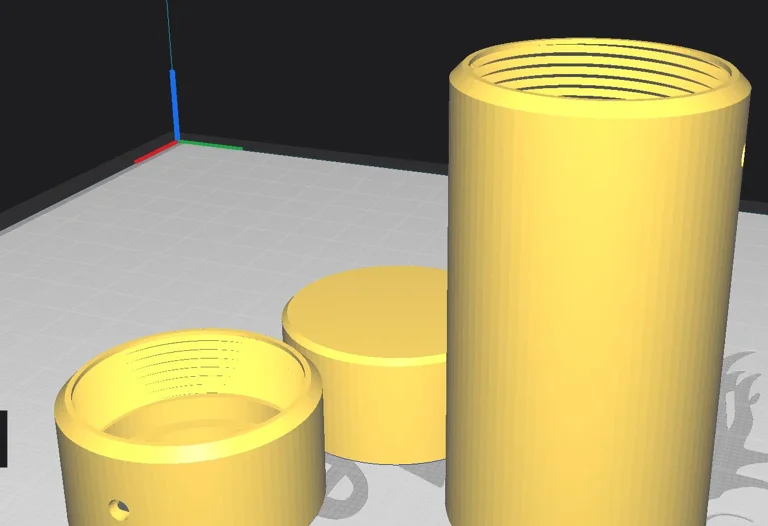

A couple test prints for the EZ22 using a shortened barrel nut sleeve. One is designed for testing how well it screws on and the other tests fitment inside the handguard. This should help you calibrate your prints.

Print recommendations:
Orientation: threads up (default)
Walls: 3+
Infill plug: 15%+, less will be easier to destroy to remove from handguard but may not fit as accurately. Disc shaped to de easily shoved out with an object.
Infill Screw: user choice

Pro tip:
For screw it is better to define a z seam location as co-ordinates to get consistent alignment and prevent stringing from crossing the bore.

**Updated to fix screw test**
