ARK1.0 Ejector DXFs for SCS

Short-Stroke 291.1KiB Released August 3, 2023, 1:00 AM 0.020LBC 0 Reposts
View this release Odysee LBRY Desktop
Share
Index Forum Twitter
Rifle Dev Pack AR-15

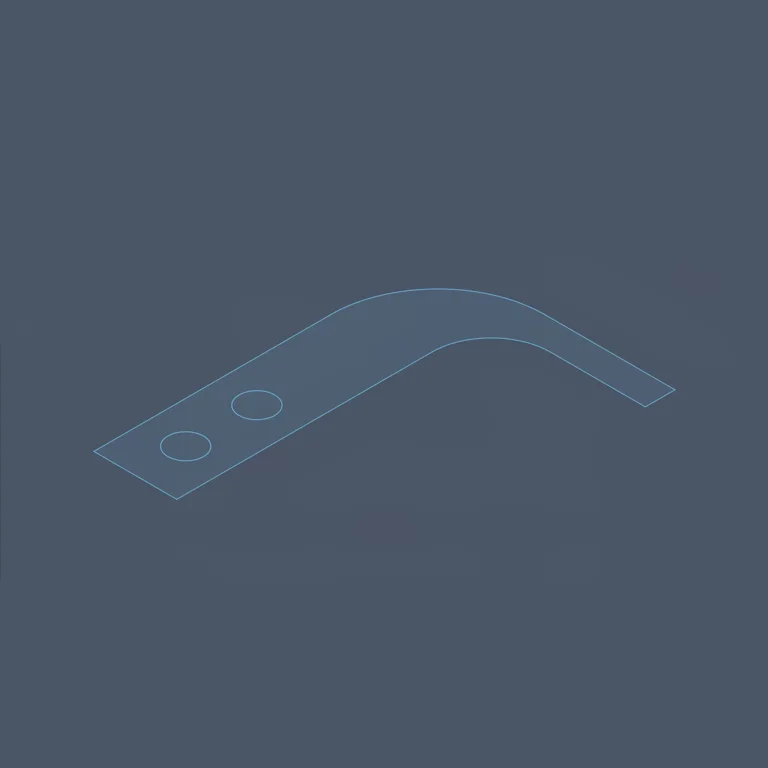

The ARK1.0 can utilize printed ejectors but metal ones will last much longer. To this end, I present DXFs in order to have the ejectors cut for you. Invader Zip does sell metal ejectors for $9.99. You can get them here: https://invaderzip.com/product/ark1-0-metal-ejectors/. If all you need is the ejector then it is likely cheaper to simply buy it from him. But if you are already using a service like SCS for other parts it does not add much to have one cut. The main reason I made these is because Invader Zip was out of stock and I figured we might as well have the option.

The PPS and universal ejector STLs are nominally 3mm/0.119" thick and the Glock ejector STL is 3.175mm/0.125". The Glock ejector I recieved from Zip is 3mm so that is likely a safe bet for all of them. If using SCS, I would go with their A36/1008 Mild Steel with 3mm/0.119" thickness. They do
have 4130 Chromoly with a 3.2/0.125" option if you are tempted to get a thicker Glock ejector, but I don't see why that'd be necessary. The Glock lower appears to leave 3.3mm of clearance so it should fit although rather snugly.

I have included the STEPs that were generated in the process of creating DXFs from the STLs that are included with the ARK1.0 DLC release. Do with them what you please.
