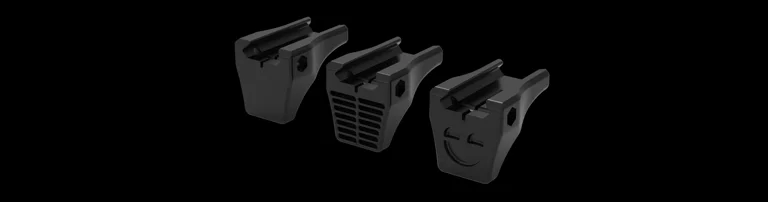

Laffs Picatinny Handstop V1.1.2: Laffs Dynamics
...It's a handstop that mounts to picatinny rails...
Were you expecting some deep lore?
Update V1.1.2: Redesignated the design. Relabeled designer name. Loosened picatinny channel dimensions.
Printer Used: Ender 3 V2
Filament Used: PLA+
Print Settings:
Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .12mm
Wall Thickness: .40mm
Wall Perimeters: 4+
Infill: 20%+
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 18%
Print the handstop upside-down.
Hardware Required:
1x M4x30mm Bolt (Can be ground down to 28mm so it doesn't stick out the side)
1x M4 Hex Nut
LBRY Tags: 3d printing; firearms; handstop; picatinny; rail
...It's a handstop that mounts to picatinny rails...
Were you expecting some deep lore?
Update V1.1.2: Redesignated the design. Relabeled designer name. Loosened picatinny channel dimensions.
Printer Used: Ender 3 V2
Filament Used: PLA+
Print Settings:
Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .12mm
Wall Thickness: .40mm
Wall Perimeters: 4+
Infill: 20%+
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 18%
Print the handstop upside-down.
Hardware Required:
1x M4x30mm Bolt (Can be ground down to 28mm so it doesn't stick out the side)
1x M4 Hex Nut
LBRY Tags: 3d printing; firearms; handstop; picatinny; rail
Related to This Release
118
1
Natural Camo Wrangler Grip Panels
Natural Camo Wrangler Grip Panels: Laffs Dynamics
Grip panels for the Ruger Wrangler revolver, embossed with a organic stylized pattern on each pane…
707
21

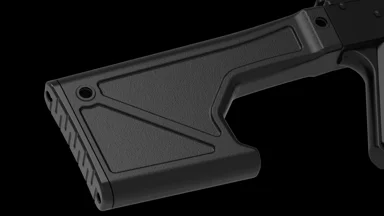

FBS-1 (AKM) V1.1.3
