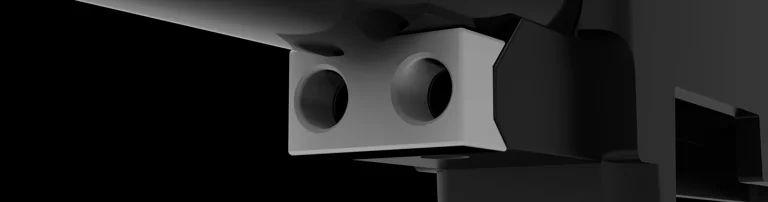

10-22 Barrel Retention V-Block V1.0.1: Laffs Dynamics

Self explanatory. Once barrel is pressed in the receiver, install this via two 12-24 V-Block bolts. (Can be
found on Amazon.com)

Idk, its a friggin V-Block. Waddaya want from me; an instructional DVD? Just print the damn thing.


Update V1.0.1: Updated recommended printing materials, changed recommended print settings for better device strength,
updated name of designer.



Filament Recommended: Glass Filled Nylon, Carbon Fiber Nylon

Print Settings:

First Layer Print Height: .20mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 8+
Infill: 60%+
Support Material Percentage: 20%



Hardware Needed:

2x V-Block Bolts


LBRY Tags: 3d printing; barrel; firearms; ruger; v block
