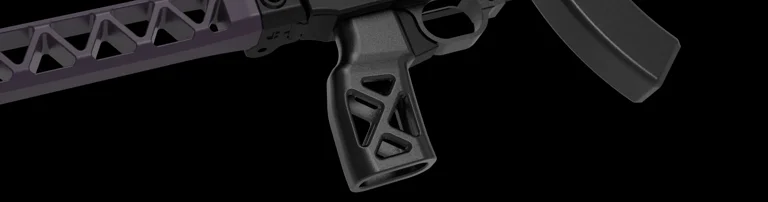

Release image
1028 22
GunCAD Index Seal of Approval Author thumbnail

AGH MY SKELETONIZED NECK Mini Grip (AR-15)

Laffs Dynamics Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International 1.7MiB Released October 17, 2022, 3:53 PM
View this release Odysee LBRY Desktop
Furniture Pistol Grip Rifle CC-BY-NC-ND Sharable AR-15 Accessory

AGH MY SKELETONIZED NECK Mini Grip (AR-15): Laffs Dynamics

I warned ya in the original release I'd finish the job! Snapped my neck and now I'm a spooky bone rattle boi!

Skeletonized variant of the original AGH MY NECK Mini Grip.

Front to Back Length: ~50mm (Excluding top grip mounting section.)

Side to Side Width: Swells from 22.32mm out to 30.70mm

Top to Bottom Height: 92.94mm

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .14mm - .16mm
Wall Thickness: .40
Wall Perimeters: 5+
Infill: 25%+
Support Material Percentage: 18%

Hardware Needed:

1x Allen Head Screw, 1/4-28 x 1"

1x Steel Star Washer

1x Safety Selector Detent Pin

1x Safety Selector Detent Spring
