reinforced fgc stingray mag release

Proto Prints Pews 116.8KiB Released September 23, 2023, 2:04 PM

View this release Odysee LBRY Desktop

Furniture 9x19mm FGC-9 Accessory Hybrid Firearm

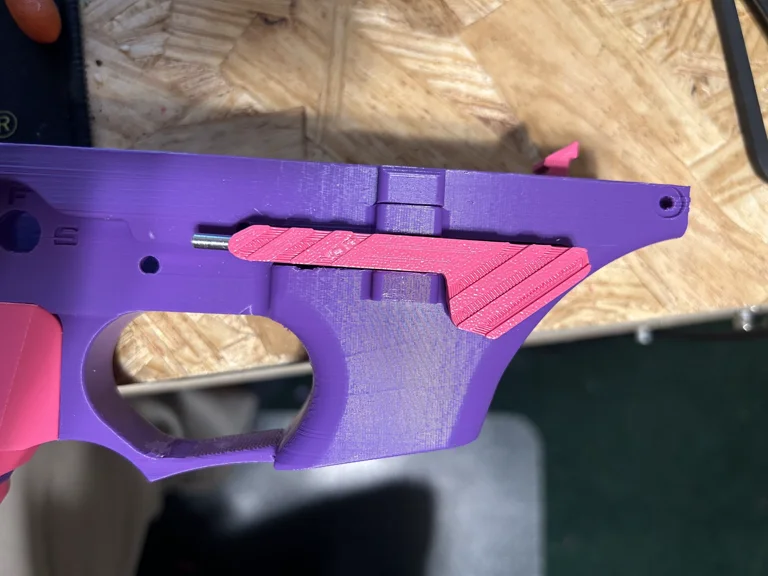

Reinforced FGC-9 stingray style mag catch using the same 3mm or 1/8 steel rod for the firing pin. print so layers are horizontal with the texture to bridge across for cleaner look. 100% infill no supports drill out hole with 1/8 drill bit for easier install of steel rod. rod length is roughly 71.5mm jb weld in place and file flush once dry

Related Lemmy Discussions

1 2 Noah - The Ark

u/TheAmazingX · 2023-10-10 13:17:10 UTC · score 1

Finally got around to learning the ECM process, and it was quite a journey, especially for 16" barrels. I used a 100A HP server PSU for the boring with \~25% of the suggested electrolyte concentration, and it seems to have mostly eliminated the conical boring issue. I still used the regular setup for r…

1 0 Noah - The Ark

u/TheAmazingX · 2023-11-19 04:52:26 UTC · score 2

It's a small thing, but the "reinforced fgc stingray mag release" from ProtoPrintsPews is very helpful. The regular one bends under the catch spring's pressure over time.

1 0 Noah - The Ark

u/TheAmazingX · 2024-11-10 04:46:19 UTC · score 2

Oh and btw, related to the Stingray not the Urutau, get ProtoPrintsPews's "reinforced fgc stingray mag release". It reinforces the mag release with steel so it doesn't creep under spring pressure like the normal one does.
