his is the M5078-M4, designed to be used to convert existing AR15 models to have M4 fire control group pockets. Inspired by Mussy's Glock Interior Template and the lack of extant high quality 3d printable M4 models, we developed this jig.
Take your existing model
Import our m5078-m4 jig into your model
Make sure the break the link of the imported model to allow easier interaction (f360)
Use move/copy tool to align jig point to point with either of the existing axis pin holes

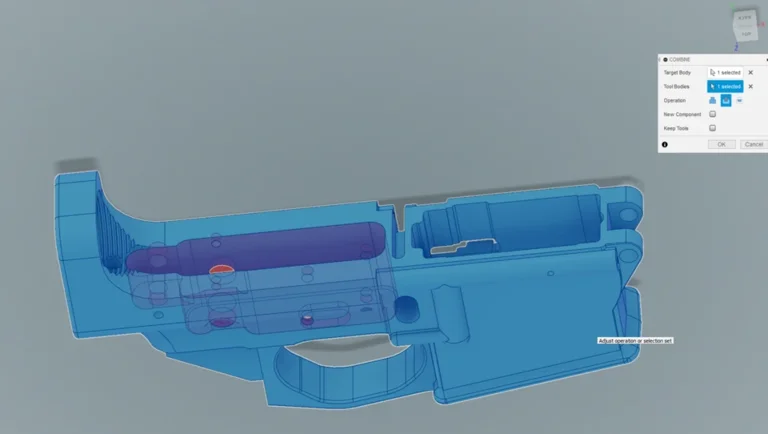

Use combine tool and cut jig from model
Inspect model to ensure proper functionality
LBRY Tags: m5078; ar15; tool; cad
Take your existing model
Import our m5078-m4 jig into your model
Make sure the break the link of the imported model to allow easier interaction (f360)
Use move/copy tool to align jig point to point with either of the existing axis pin holes
Use combine tool and cut jig from model
Inspect model to ensure proper functionality
LBRY Tags: m5078; ar15; tool; cad
