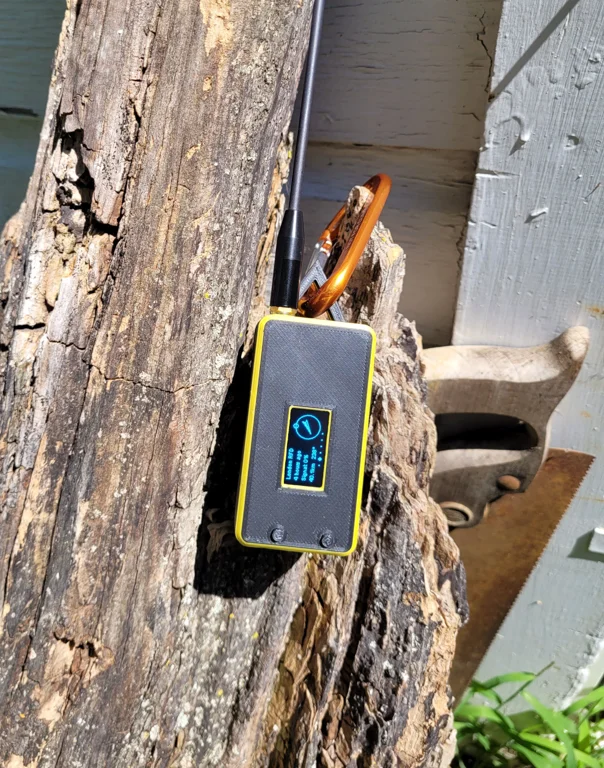

Heltec V3 Double Lipo SnapCase

h0us3m0us3 76.3KiB Released August 18, 2025, 12:07 PM 0.001LBC 1 Reposts
View this release Odysee LBRY Desktop
Share
Index Forum Twitter
Gear
Simple, three part, zero support case for your Heltec ESP32 LoRa V3/Makerfocus ESP32 LoRa Development Board. This case has room for 2 Lipo cells stacked. So long as those cells measure 65mmx35mmx10mm, which most do. Careful the cells are in parallel. Or don't, I ain't yer dad.
As some batteries are thinner or thicker than others, there may be wiggle room underneath the board which I personally fixed by putting the foam sheet that came with the board between the batteries and the board. That said other cells didn't need the spacer. Yer a big girl, you can figure out a spacer if needed.

Feel free to leave any any criticism or probs you encounter in the comments.
No guarantee I'll fix 'em if you shout 'em out, but I DO guarantee I won't fix 'em if you don't bitch about 'em.

LBRY Tags: heltec; meshtastic; lora; stl; esp32
