Changes 4/28/25
V2.3
- Added a 45 degree hole where the two halves of the handguard meet for an M3x10 screw,
used to draw in the pins and help keep everything more permanently attached.
- Added a Rear Section designed to fit the M&P 15-22 and it's proproietary BS.
BIG thanks to u/blakis21 on reddit for printing the test pieces that made this possible!

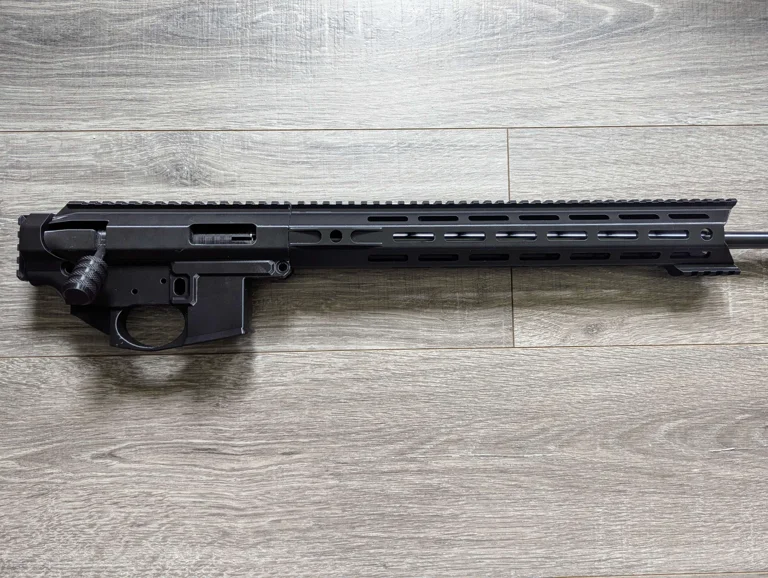

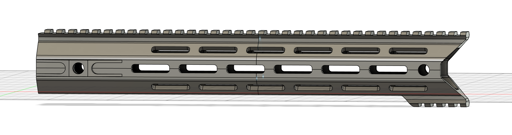

This is a handguard I designed, heavily inspired by the STNGR HWK handguard available commercially.
Barrel nut is integrated into the handguard, and while this was designed specifically with the wisp in mind, it uses the mil-spec standard 1-1/4x18 threading, so it should work for any upper. I haven't tested this myself, so please let me know if this is not the case!
Optional, but highly recommended: THREE 3x30mm Dowel Pins for reinforcement/connecting the two halves.
(Not needed for the one piece prints)
HIGHLY Recommend Reeming/Drilling out the holes for the steel pins, as they can be pretty tight. 1/8th or 3mm drill bit.
(YES I KNOW MY WISP ISNT DONE LEAVE ME ALONE)
LBRY Tags: ar-15; handguard; wisp; .22; .22lr
