Precision Grip Lite (AR-15) V1.2.1

Laffs Dynamics Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International 8.3MiB Released May 17, 2022, 3:40 AM 0.010LBC 0 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Furniture Pistol Grip Rifle CC-BY-NC-SA Remixable Sharable AR-15 Accessory
Precision Grip Lite V1.2.1 (AR-15): FFFTech/FFFTechnology

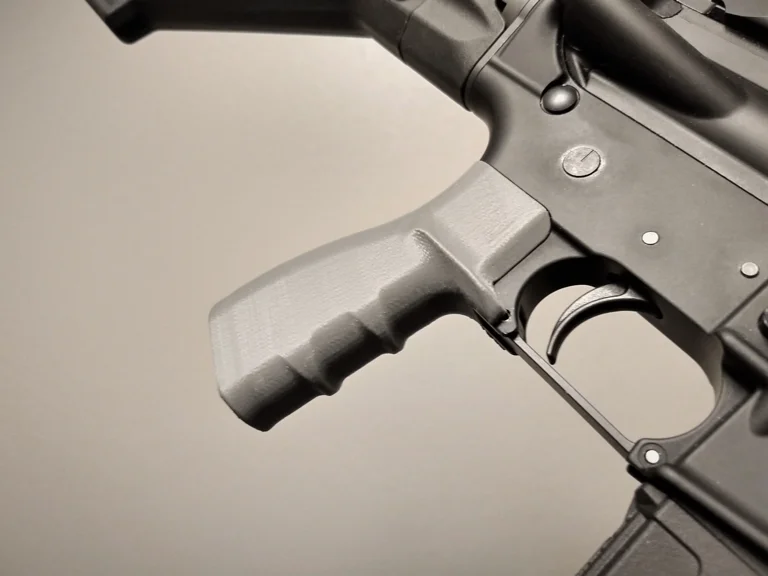

A reduced material version of the original Precision Grip design. Retains the thumb rests and the
finger grooves. The palm rest is omitted, and the grip length is shorter for reduced weight.

Three variants are available:

*Standard
*Non Grooved, Standard
*Non Grooved, Cross Cut


Update: Non-Grooved design variants added, document updated with Ender 3 V2 print parameters.



Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .18mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 5*
Infill: 20%*
Infill Pattern: Gyroid
Material Flow: 100%

Support Material Percentage: 20%

(Support material only needed for finger grooves and underside of thumb rests)




Hardware Needed:

1x Allen Head Screw, 1/4-28 x 1"

1x Steel Star Washer

1x Safety Selector Detent Pin

1x Safety Selector Detent Spring




LBRY Tags: 3d printing; ar15; firearms; grip; precision
