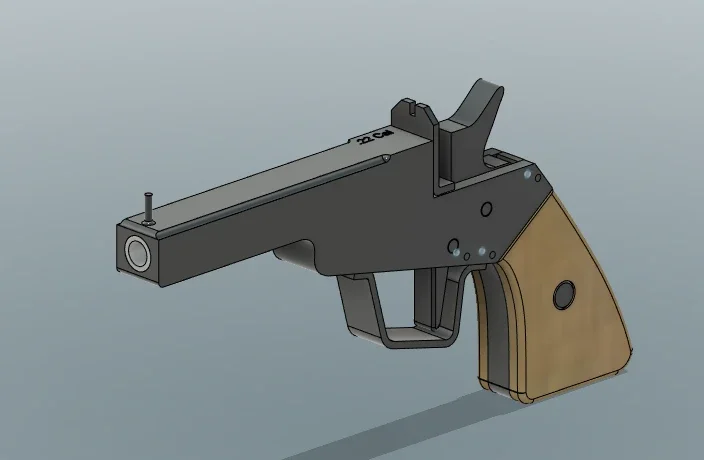

This is a 22 caliber cap and ball single shot pistol based on "Jaco designs Pioneer Pistol". This design and a few others was submitted to me by a fellow grabcad user (i am unsure if he wishes to be known publicly).
The fire control group I have changed from the original as Jacos Measurements did not seem to work out.
This design in general is very versatile you can change just about anything you like. The templates in the booklet are a little rough but all in all they are enough to construct the firearm. I have left the chamber un threaded as you will thread this to match the pistol nipple of your choice. Barrel inserts and balls can be found on any muzzle loader retailer.
Grabbed from Grabcad. Credit goes to Reason.
LBRY Tags: freedom; gunsmithing; pistol; handgun; jaco
The fire control group I have changed from the original as Jacos Measurements did not seem to work out.
This design in general is very versatile you can change just about anything you like. The templates in the booklet are a little rough but all in all they are enough to construct the firearm. I have left the chamber un threaded as you will thread this to match the pistol nipple of your choice. Barrel inserts and balls can be found on any muzzle loader retailer.
Grabbed from Grabcad. Credit goes to Reason.
LBRY Tags: freedom; gunsmithing; pistol; handgun; jaco
