Parametric Washer Stamping Jig

THouston Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International 6.0MiB Released April 27, 2024, 5:36 PM

View this release Odysee LBRY Desktop

Muzzle Device Suppressor CC-BY-NC-SA Remixable Sharable ATF Form 1 Accessory

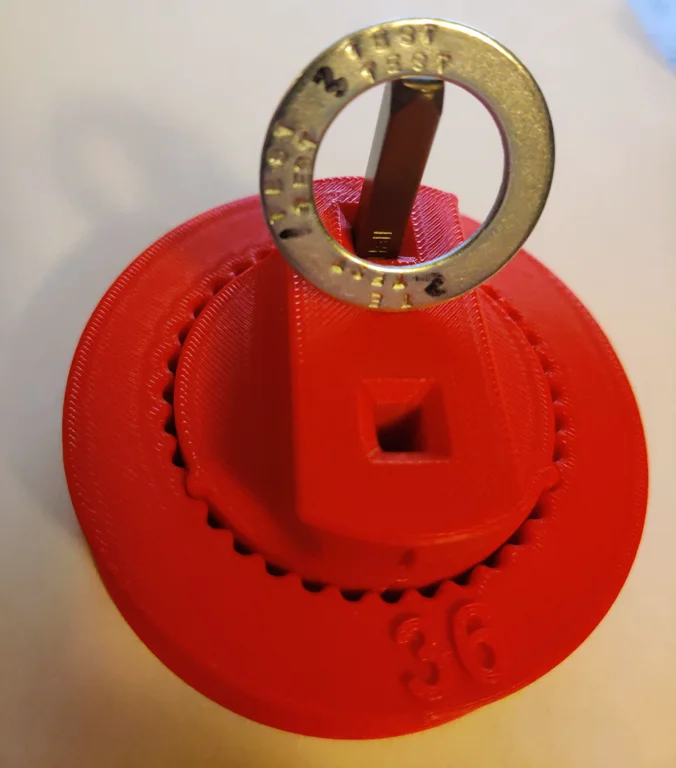

This stamping jig will aid in engraving washers and machine bushings for many purposes. This is a complete rebuild of duckstape's Parametric Washer Stamping Jig (https://www.printables.com/model/855641-parametric-washer-stamping-jig).

The included STLs are for the FTN.3 Form 1 bushings. Print the appropriate test piece first to make sure your washer fits. If not, use the included F3D file to make adjustments.

Updated to make the increments parametric also.

LBRY Tags: nfa; ftn

Related Lemmy Discussions

1 3 Noah - The Ark

u/TechGundam · 2024-04-27 23:08:49 UTC · score 21

I rebuilt duckstape's Parametric Washer Stamping Jig to support far more increments and multiple lines of text.

The jig is almost fully parametric (I think I may have gone to far, there are 32 entries in the parameters list) so changes are easy. The only exception is that changing the number of increme…

1 1 Noah - The Ark

u/kakow_dalink · 2024-04-28 03:43:21 UTC · score 5

"Parametric Washer Stamping Jig"
