Introducing the final rendition of this OEG scope. It requires a 34mm scope ring mount. Adjustments are done via 1/4" machine screws and 2 springs that fit inside (that are also capped with 1/4" machine screws). It has interchangeable heads to switch from fiber optic only to Bow Sight Light enhanced. The Bow Sight Light Head is 3/8"-32 threaded. Keep Fiber Optic Rod in first 1/4 of Adjusting Stick ONLY. It prevents "Parallax" and the potential risk that comes with it. If using the Fiber Optic Only Head, have the fiber optic rod protrude 1-2" from the Adjusting Stick. The print comes with a Tool to tighten down the Heads.

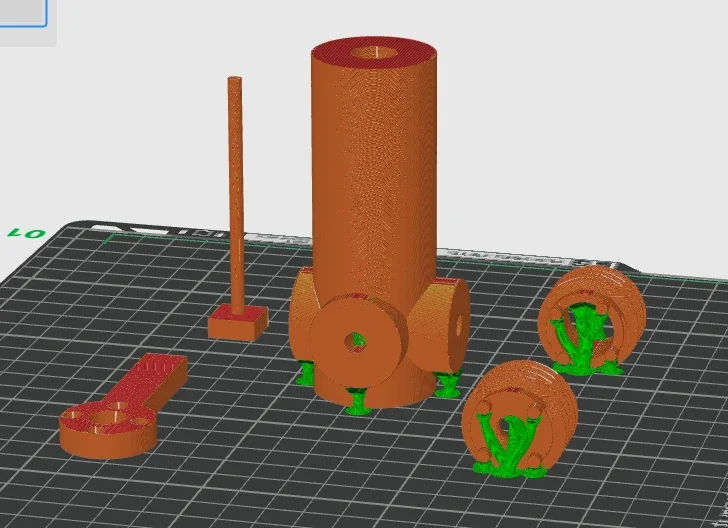

Print the heads with Support Critical Regions Only OFF. Print main body with it ON. Print as shown.

ISSUE: Fiber Optic Rod won't fit in Adjusting Stick. CORRECTION: Enlarge hole via settings. It may take a few tries. Otherwise drill can work if careful.
ISSUE: Adjusting Stick comes out terrible. CORRECTION: Print separately. Decrease speed to 30-40 m/s, increase fans to 70%+.
ISSUE: Bow Sight Light won't thread on. CORRECTION: Maintain perpendicular position and use force. Use a lighter for half a second to make the threads softer if necessary.
ISSUE: Body threads are buried in supports. CORRECTION: Turn on Support Critical Regions Only. Body can be saved with some effort and cheapo picks.
ISSUE: Tool broke Head tabs. CORRECTION: Unga big strong, Unga need little weak instead
ISSUE: Light is getting in past the Adjusting Stick. CORRECTION: Take off head, place piece of paper with hole where fiber optic is, put head back on.
