Mac n Cheese v2 - Masterpiece Arms Side Cocker - Shorter Trunnion Seats

Roland Deschain Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International 665.9KiB Released July 22, 2023, 2:20 PM 0.018LBC 1 Reposts
View this release Odysee LBRY Desktop
Share
Index Forum Twitter
9x19mm PCC CC-BY-NC-SA Remixable Sharable Cobray M-11/9

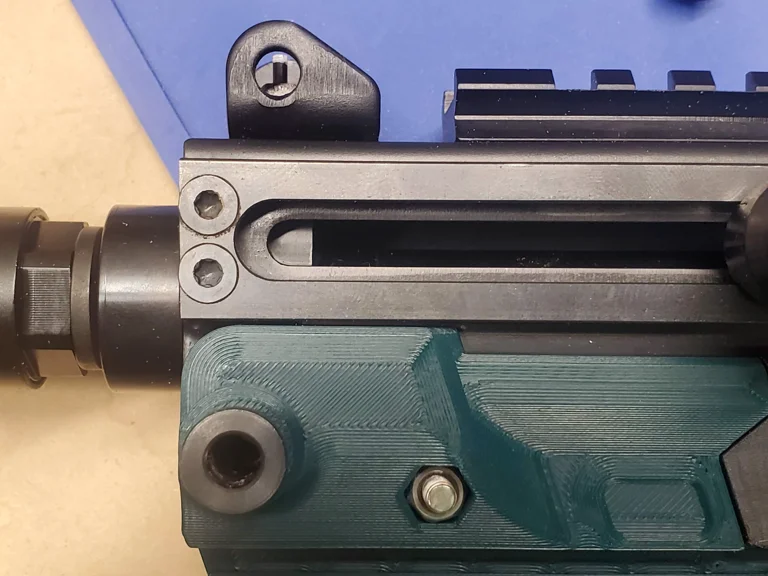

The original trunnion seat was a little too tall and hit the side cocker rail on the "Special Parts Kit – Full Size 9mm Side Cocker with Scope Mount" upper from Masterpiece Arms (https://masterpiecearms.com/shop/special-parts-kit-full-size-9mm-side-cocker-with-scope-mount/). This version shaves off 0.762mm from the height of both trunnion seats to resolve that issue. I also decreased the width for the front pin block by 0.6mm to reduce slop.

"Size, gunslinger… size.”

– The Man In Black

Original files: https://odysee.com/@MiddletonMade:1/Mac-n-Cheese-V2:d

Required materials:

(1) M4 x L30.0 screw
(1) M4 nut

Affiliate links:

These are the parts I purchased from Amazon to complete my build. If you use these links I'll earn a small commision and it will cost you nothing.

M4 Screw kit - https://amzn.to/43ACYUb

-- Roland Deschain
