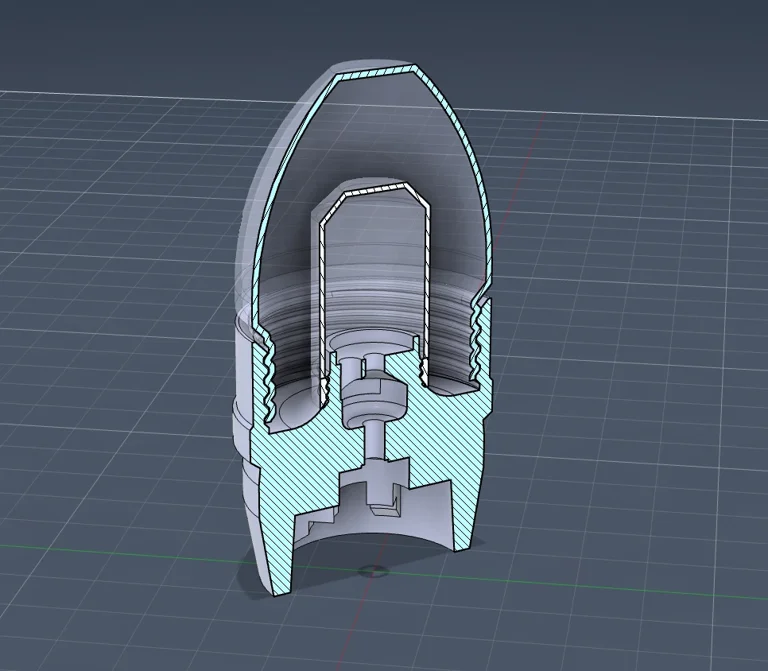

The main issue with fused projectiles and smokeless based blanks is the pressure from the blank is notorious for shredding your fuse before it even ignites leading to UXO littered throughout your shooting range. The penny acts as a blast shield to absorb the initial pressure blast from your blank and protects your fuse. This makes fused 40mm projectiles a breeze with payload capsules to seperate burst charge from filler (OC, glitter, chalk, firework stars, etc).
Both the payload and windscreen threads are built off @VanillaKyleKyle:c Modular Signaling System dev pack (MSS). Therefore all parts *should* be directly interchangable with other dev's releases that use the same thread profiles such as @LauncherPope:f recent threaded projectile release.
-=-=-UPDATE-=-=-
V1.0 - Initial release
V1.01 - 3/26/2025 - Thickened skirts to put up with higher pressure blanks, added long windscreen, and added XL payload capsule.
V1.02 - 3/27/2025 - Added variants of both pusher bases to be used with KAK style windscreens. Updated rifling bands OD from 41.15mm to 41.2mm.
V1.03 - 8/12/2025 - Added a XM651E1 CS Smoke clone windscreen for increased payload and aesthetics.
LBRY Tags: mss; modular; signal; 40mm; launcher
Both the payload and windscreen threads are built off @VanillaKyleKyle:c Modular Signaling System dev pack (MSS). Therefore all parts *should* be directly interchangable with other dev's releases that use the same thread profiles such as @LauncherPope:f recent threaded projectile release.
-=-=-UPDATE-=-=-
V1.0 - Initial release
V1.01 - 3/26/2025 - Thickened skirts to put up with higher pressure blanks, added long windscreen, and added XL payload capsule.
V1.02 - 3/27/2025 - Added variants of both pusher bases to be used with KAK style windscreens. Updated rifling bands OD from 41.15mm to 41.2mm.
V1.03 - 8/12/2025 - Added a XM651E1 CS Smoke clone windscreen for increased payload and aesthetics.
LBRY Tags: mss; modular; signal; 40mm; launcher
Related to This Release
450
15
Brass Knockout Tool (37mm & 40mm)
Simple tool to help knockout the .38s&w/.38spl brass from your 37/40mm cases.
Set your 37/40mm case on top of the printed tool and use a punch & ham…
1868
23
Stubbs_Stick_Grenade_Pack
Smoke Grenades and More from Stubbs aka the_gun_foogle! Have fun and smoke responsibly!
277
6

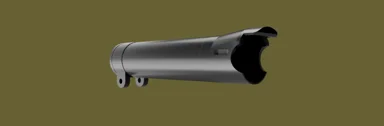

M320 Barrel Reference Model
