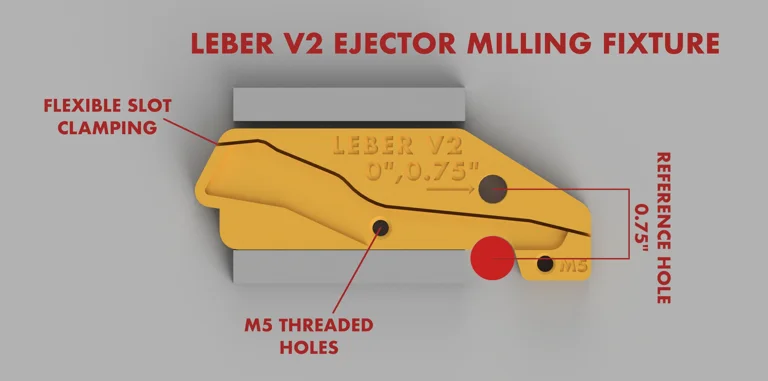

Clamp your ejector more securely in a vise for milling Leber V2 ejector cut.
I am told this also should work for the KF5 & SF5 ejector cuts but I have not verified myself.
Features
• Two threaded holes w/ screw secure ejector in the jig.
• Slot along the top of the ejector pocket allows vise to transmit clamping force onto the ejector.
• Bottom of the ejector slightly protrudes from fixture to act as a reference against the fixed vise jaw.
• Reference hole spaced 0.75” from the ejector cut (center to center).
Requires
• Two M5x0.8x10 or M5x0.8x12 screws
• One M5 Washer
LBRY Tags: gatalog; leber; fosscad
I am told this also should work for the KF5 & SF5 ejector cuts but I have not verified myself.
Features
• Two threaded holes w/ screw secure ejector in the jig.
• Slot along the top of the ejector pocket allows vise to transmit clamping force onto the ejector.
• Bottom of the ejector slightly protrudes from fixture to act as a reference against the fixed vise jaw.
• Reference hole spaced 0.75” from the ejector cut (center to center).
Requires
• Two M5x0.8x10 or M5x0.8x12 screws
• One M5 Washer
LBRY Tags: gatalog; leber; fosscad
Related to This Release
142
2

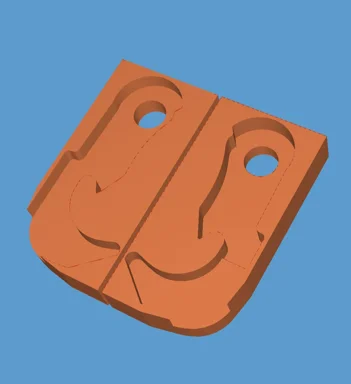

Leber V2 Backplate Test Jigs
Test Jigs for s3igu2's Leber V2 Backplates.
Full size plate designed by s3igu2 and K size replicated by senjutsutekinaseido.
Credits to s3igu2!
135
7
SF5 Really Strong Latch Endcaps
Took Unseen's really strong latch and added it to the SF5 endcaps. Only did the standard nut K spec and Standard length.
These use m5 screws for pivo…
116
6

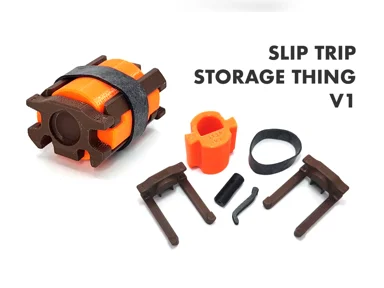

SLIP TRIP STORAGE THING
Store 2 x "MP5 Slip Trip V3" and some super safe stuff inside it for the range!
Works with 1.5" Ranger band or a standard rubber band.
Not tested w…
645
12

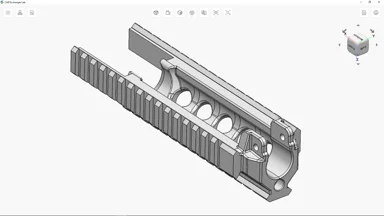

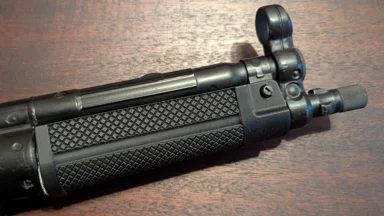

MP5 Slim Handguard V2
