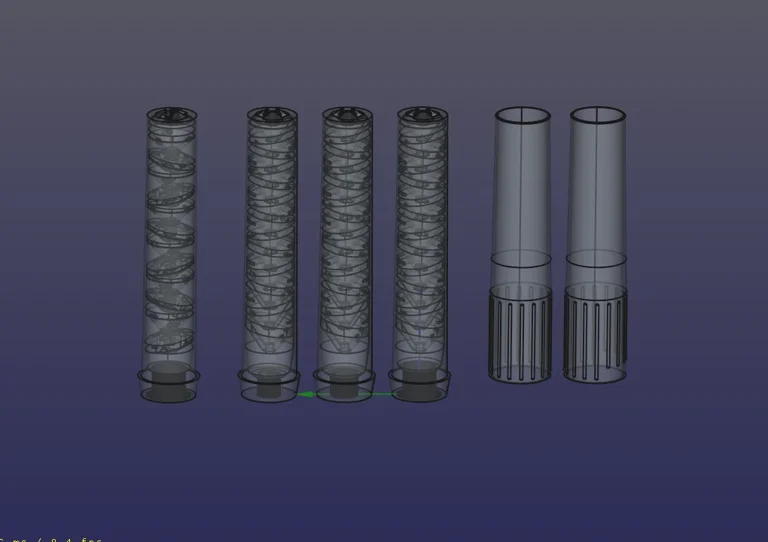

Open beta for a couple 22lr variants in the HubTN.4 series. The first version was only made for use with 3/4x16 thread adapters and used 6 baffles. I didn't make the porting small enough and it resulted in too much "flowiness" (aka sound). The V13 came next which follows a more traditional 22lr suppressor baffle-prolific design. It's very quiet and it's still very durable when fully completed with its sleeve. More info in the assembly instructions. A slim can made to better accommodate iron sights will be released as well in the near future.

v2 Update: Added that includes a support blocker file to keep support from generating inside past the endcap. Assembly instructions also updated to v2.

v3 Update: A step file for the Sleeve was requested for personalization.

v3.1 Update: Taken down temporarily to rework design, stay tuned.

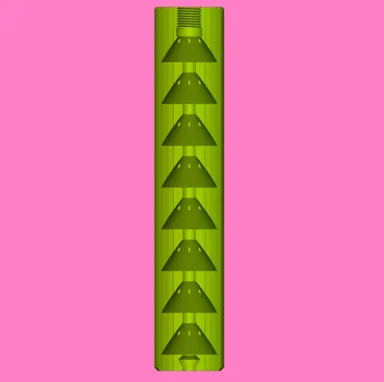

v4 Update: The Core file has been updated to "22lr V13" which has a traditional baffle stack with 13 baffles that are still ported, but minimally. Another design that's more experimental is still being pursued but isn't ready for beta testing yet.

v5 Update: Reports are conflicting on the v1 Core model with some saying it suppresses just fine, others no. I haven't been able to test myself as I'm oot for a while but did re-include it in case people want to try one, the other, or both.

v6 Update: Added 1/2x28 and 5/8x24 versions for the Core.

v7 Update: Improved the 1/2x28 Core file.

v8 Update: Improved the 1/2x28 Core file again. Shouldn't need it again.
