Hitchhiker's bastard son barrel install jig plates and jig head

250smacks 25.6KiB Released November 25, 2024, 8:33 PM 0.001LBC 0 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Accessory

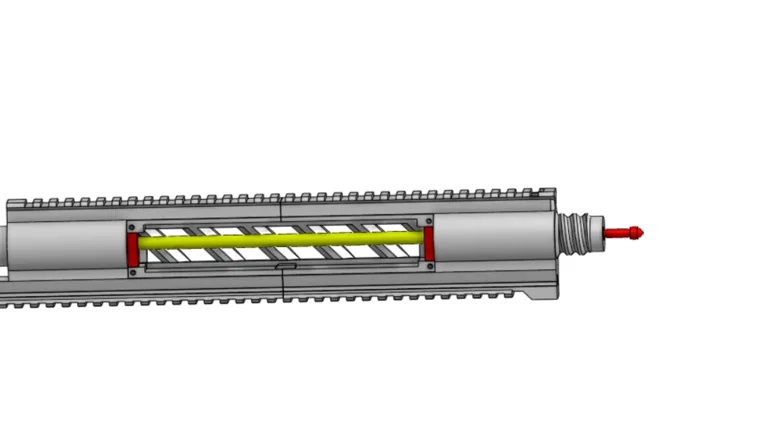

You'll need 2 of the jigs plates, install m3 nuts for the handguards before you slide these into place. Fill the barrel with jb weld on the receiver and muzzle end from the opening from the inside of the barrel. Install the jig(plates) in place then insert the jig head into the chamber side of the barrel liner, sharp side up and push it through the muzzle and through the jig plates and all the way to the chamber then remove the jig head. This requires quite a bit of jb weld and dry time. The jig head keeps the chamber clean. Picture shows plates installed (in red).
