PDW S/B, Model 1 V1.3.2

Laffs Dynamics Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International 4.1MiB Released December 22, 2022, 8:06 AM 0.010LBC 1 Reposts

View this release

Odysee

Alternative links

LBRY Desktop
Furniture Stock CC-BY-NC-ND Sharable Accessory
PDW S/B, Model 1 V1.3.2: Laffs Dynamics

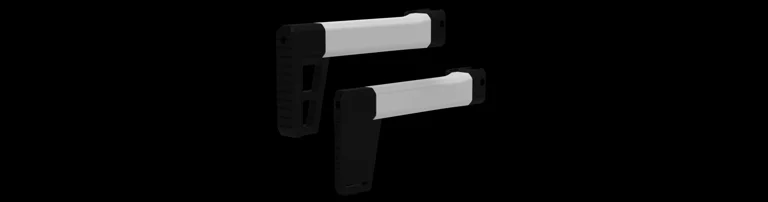

A short length of pull, folding stock/brace. Mounts via 4+ slot picatinny rail. Either a blade style brace,
or buttstock can be fitted in the rear socket of the folding arm.


Update V1.3.2: Redesignated design name.



Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 218C
Bed: 56C
First Layer Print Height: .18mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 5
Infill: 50%
Infill Pattern: Gyroid
Support Material Percentage: 20%


Hardware Needed:

1x M6x40mm Bolt
1x 8mm x 20mm Spring (Ender 3 Bed Spring)


Notes:

1) The M6x40mm bolt should simply pass through the hinge of the folding arm. Should the threads cut into
the hinge, dremel out the hole slightly until the bolt passes through. The bolt should only thread into the
folding mech mount's top and bottom hinge points. Be sure not to overtighten the bolt, otherwise the hinge
points could flex and squeeze together, binding the folding arm and not allowing it to articulate.

2) If the spring is too tight, simply cut off a coil to reduce pressure on the mechanism.




LBRY Tags: 3d printing; buttstock; firearms; folding; picatinny
