Close Quarters Evo Grip, Cutback (CZ Scorpion Evo 3)

Laffs Dynamics Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International 10.4MiB Released April 5, 2024, 4:02 PM
View this release Odysee LBRY Desktop
Foregrip Furniture CC-BY-NC-ND Sharable CZ Scorpion Accessory

Close Quarters Evo Grip, Cutback (CZ Scorpion Evo 3): Laffs Dynamics

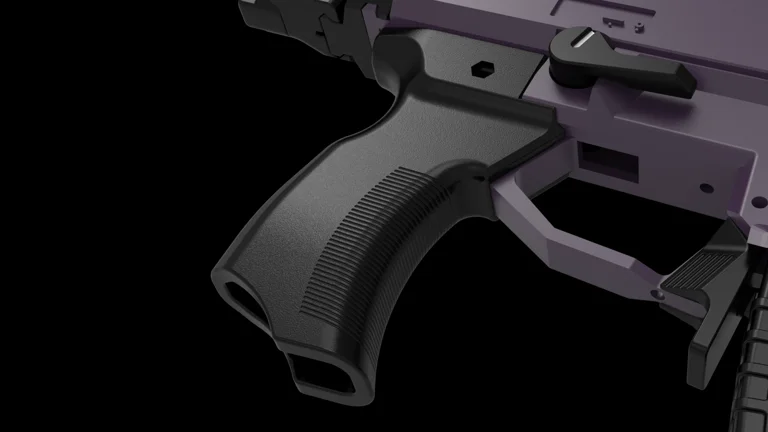

A large, curved, forward angle grip for use in close quarters engagements. Has .5mm wrap ridging around the front section.

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .2mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 6+
Infill: 38%+
Support Material Percentage: 18%

Print the grip upside-down.

Hardware Required:

1x M4x30mm Bolt (Can be ground down to 28mm, so it doesn't stick out the side)

1x M4 Hex Nut

LBRY Tags: 3d printing; firearms; evo; grip; cut
