This is a 2-piece adapter based off the Griffin Armament A2 adapter for attaching your *legally built* Saturn Suppressor (https://odysee.com/@TheGatalog-Suppressors:a/Saturn-Suppressor-System:b) to an A2 birdcage flash hider. Print the Lock and Threads vertical, with only 85 degree tree supports on both. The Hexlock may be printed in it's sideways orientation and may help with strength, but is harder to initially thread together. It uses 75 degree tree supports, and may need to have a file run through the threads before you assemble. Note: this is only rated for .22lr as of now, but the Hexlock *may* survive single 5.56 shots out of a long (20"+) barrel (untested as of now).

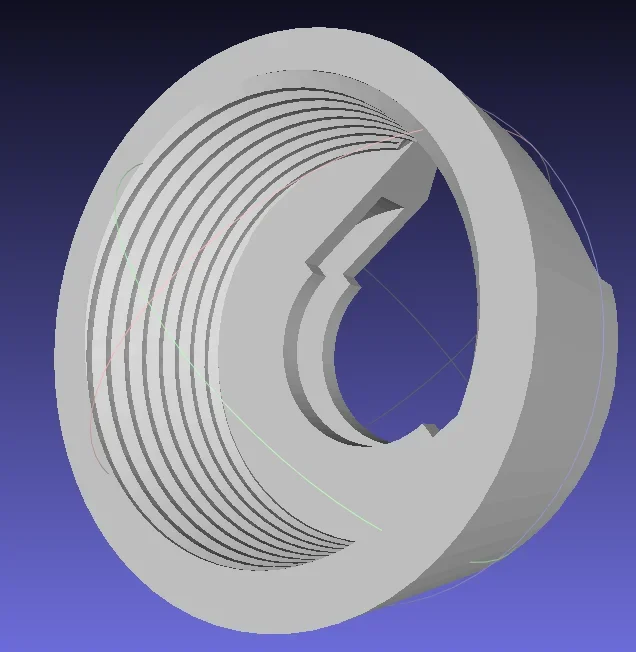

Assembly: the Lock fits around the A2 flash hider, with the two half-rings at the bottom fitting into the two grooves around the flash hider's base. The top of the Threads (as printed) screws flush into the suppressor, and the threads at the bottom (tapered part facing down) screws not flush into the Lock. Screw it down until snug, don't overtighten. You should still be able to twist the entire assembly around the flash hider with a little bit of force.
As with all suppressors, make sure your bore is concentric. While you won't necessarily need shims instead of a crush washer on your A2 flash hider, it may solve concentricity issues.
LBRY Tags: guns; 3d printing
Assembly: the Lock fits around the A2 flash hider, with the two half-rings at the bottom fitting into the two grooves around the flash hider's base. The top of the Threads (as printed) screws flush into the suppressor, and the threads at the bottom (tapered part facing down) screws not flush into the Lock. Screw it down until snug, don't overtighten. You should still be able to twist the entire assembly around the flash hider with a little bit of force.
As with all suppressors, make sure your bore is concentric. While you won't necessarily need shims instead of a crush washer on your A2 flash hider, it may solve concentricity issues.
LBRY Tags: guns; 3d printing
