The much requested 38/357 Six-Speed is finally here!

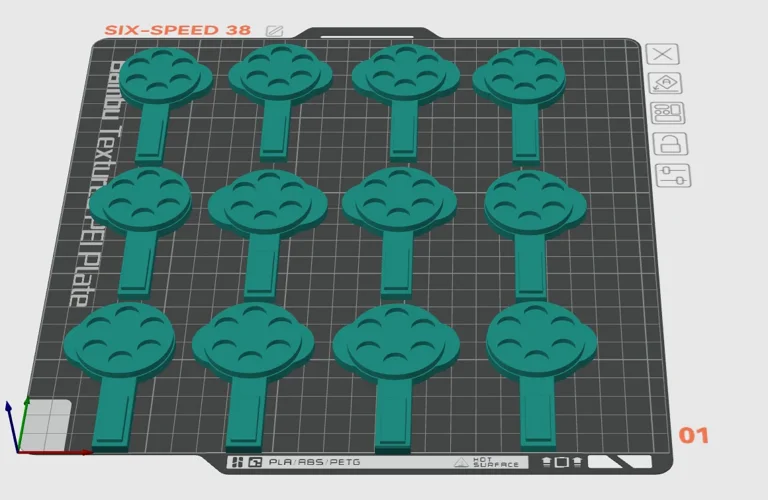

Print in place with your favorite TPU filament, as oriented, with no supports. Tested with Polymaker 95A TPU, 15% infill, 2 wall loops, 4 bottom, 6 top.
Takes about 10g of filament, and half an hour of your time to quicken your reloads out on the range.
Included two new EZ models to increase ease of stripping the rounds, along side a reverse orientation for wrong handed revolvers.
Due to the wide variety of six round 38 cylinders, this release comes in three separate sizes, each with four different variants.
Sizing Guide
Small: Cylinder Diameter Cartridge Radius 11.58
S&W K Frame (10*, 12, 13, 14, 15, 19*, 64*, 65*, 66*, 67)
Taurus Mid Frame (606, 65, 66, 80, 82)
Dan Wesson 15*
Charter Arms
Rossi (971, 951, 851, 351)
Medium: Cylinder OD 38.1 Cartridge Radius 12.065
Taurus 669*, 689*
Large: Cylinder OD 39.62 Cartridge Radius 12.7
S&W L-Frames, 586*, 686*, 581, 681
Ruger GP100* (.38/357 6 Round)
*Confirmed by math
**Confirmed by testing
Stay tuned for future Speed Series releases!!
LBRY Tags: revolver; speed; loader; 38; accessories
