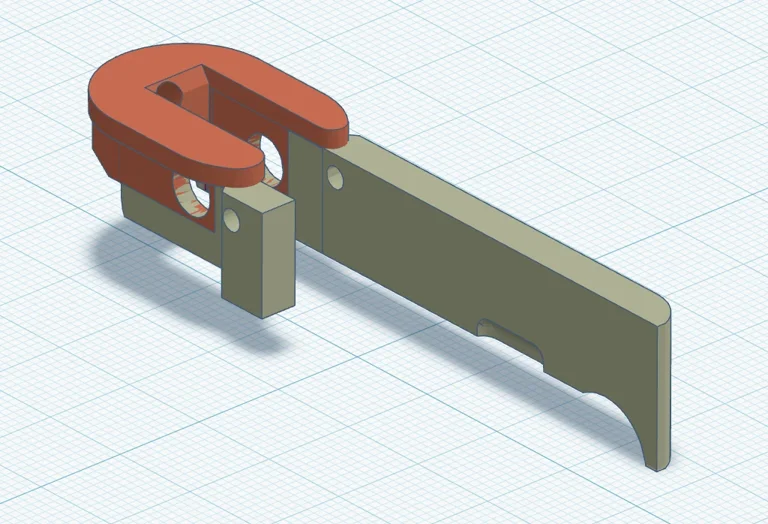

UDIS - Uruk Hai

This remixed version of the full-size U-DIS kinda looks like the LOTR Uruk Hai Sword.

U-DIS: https://odysee.com/@YourBroStevo:8/U-DIS-%28Universal-Drop-In-System%29-Geissele%2C-LaRue%2C-Schmid%2C-milspec%2C-CMC-and-Rise-armament-trigger-compatibility-:8

This is just the housing. It uses a 5.5 mm x 11 pin (for M16 pocket use 5.5x16mm) and 2.5mm x 16 pin.

Some changes had to be made to fit the original U-DIS full size housing into my LMT Defender L lower with the 3 round burst trigger installed.

Changes made:
- hammer pin hole diameter increased, where the housing rests on, I've had to remove material in the past to fit, so just doing it early
- clearance cut for SSA-X trigger shoe, near the hammer spring hole at the bottom
- removed material at the rear, sometimes the upper can clip the rear top corner during install
- removed material at the side bumps, my LMT lower has it's bumps a little bit further forward than other lowers. which makes it incompatible with most mini kabutos, will still be compatible with all other lowers, just not a super snug fit.
- remove the right arm of the housing, this makes room for the 3 round burst spring and cam. This makes the housing compatible for use with the LARK and 3 round burst FCGs. Function retained just like a normal full size housing.
- remove material from the bottom of the left arm of the housing, just extra material so I removed for weight.

Optional features, separate .STL files provided for each combination
- groove, a thumbnail groove to assist in popping out the 2.5mm G$ overtravel pin
- shim tape, a .2 mm indent on the sides to allow for tape to installed over the 5.5mm pin and the 2.5 pin stash. pins may need to be shortened to fit the tape.
- stash, in an angled or straight alignment. This is an experimental feature/design. allows you to store your 2.5 mm pin when swapping from a G$ host to non-G$ on the device. The inner wall of the AR will retain the pin when installed.

LBRY Tags: ar15; drop in; frt; kabuto; super safety
