Ruger Single Action Grip Support Block
Ruger Single Action Grip Support Block: Laffs Dynamics

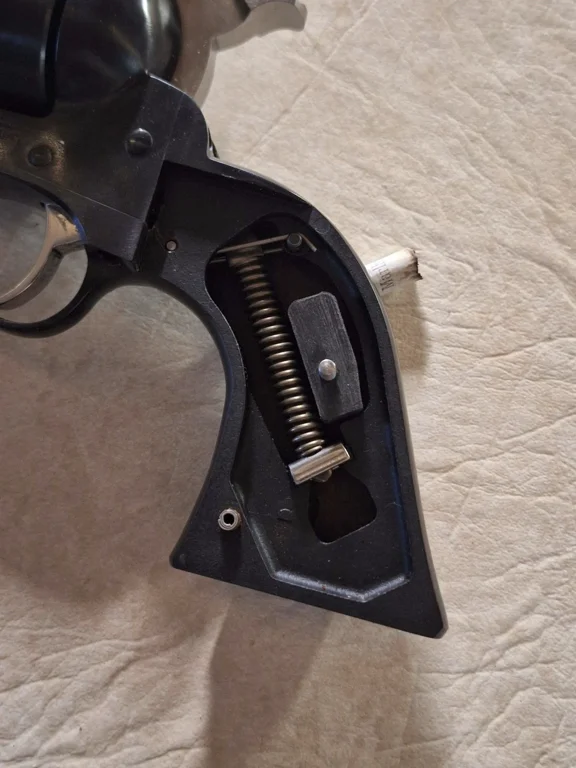

A central printed polymer block to add support between grip panels of Ruger single action revolvers. Without this block, should one overtorque the
grip screw, the grip panels may crack due to the section in the grip frame being hollow. With the support block in place, one can tighten the screw
without risk of cracking the panel wood.
This grip support block is compatible with Ruger revolvers with the XR3-RED grip frames, the width between grip panels being 12.7mm.
Models that use the XR3-RED grip frames are:
*New Model Blackhawk
*New Model Super Blackhawk (4.62in & 5.5in length barrel models specifically)
*Old Army (Discontinued)
*New Model Single Six
*Wrangler
*Super Wrangler
Filament Used: CF-Nylon / PA6-CF
Print Settings:
Extruder: 280C
Bed: 105C
First Layer Print Height: .2mm
Standard Layer Height: .12mm - .16mm
Wall Thickness: .40mm
Wall Perimeters: 5+
Infill: 100%+
Notes: Sanding the sides of the block may be needed should the design be slightly too wide, depending on the user's print settings.
