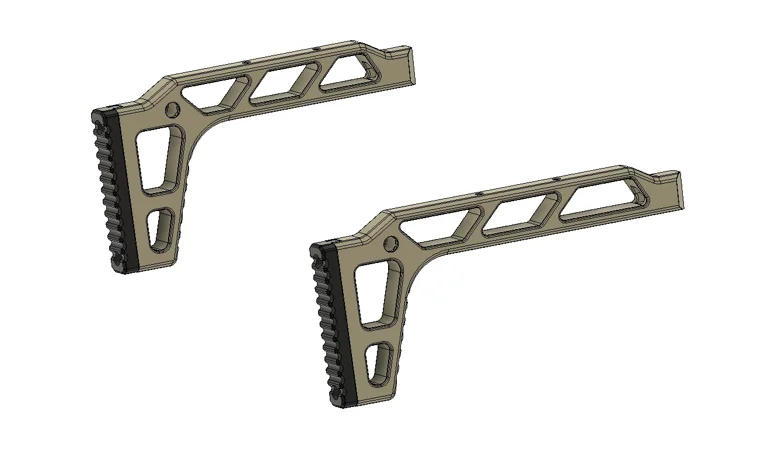

Sigish Folding Stock
Stock based on the PMM/SIG style simple folding stock. Designed to be attached to the "ZION ARMS Mount Adapter" found on Amazon or similar, which is a picatinny mount folding hinge.
File includes two lengths, the long version is roughly the same as a fully extended AR carbine stock and the short one is like a carbine stock three clicks out from fully collapsed.
Hardware required:
-one M6x30 taper head screw and M6 nut, for attaching to the folding hinge mount.
-one M5x12 and one M5x16 cap-head screws for attaching the buttpad.
-optional, two additional M5x12 cap-head screws can be used to attach a currently non-existent cheek riser piece.
Print Orientations:
-Main stock body, print laying flat on one of it's large sides. Minimal tree supports needed for some of the screw holes and the dovetail on the back for the pad.
-Buttpad, print in TPU with the dovetailed side on the bed, enable supports for the underside.
LBRY Tags: guncad; 3d2a; ar15; stock
