POP-5
Just a note regarding the colors : I just like the character Rebecca from Cyberpunk, I don't care about woke shit. It is like a signature for me.

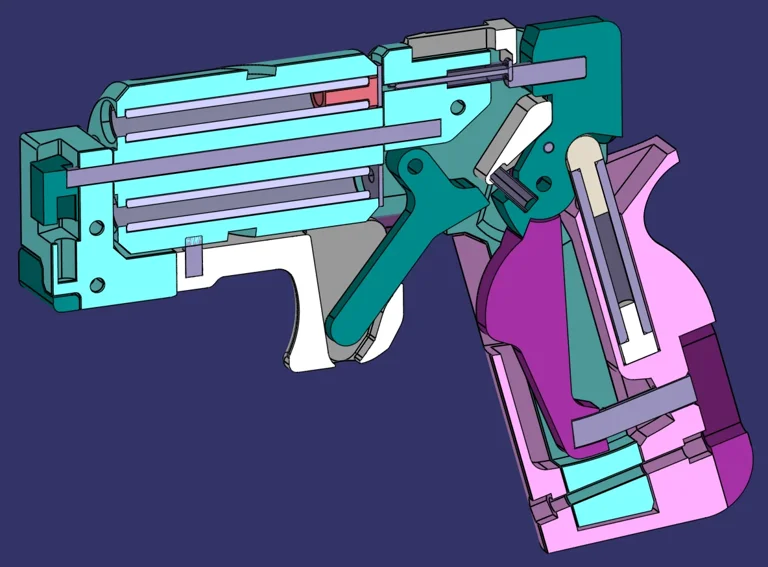

So here is the POP-5, a double action pepper-box. Works with 209 primers for now. Better concept than the 2 other ones on my channel, but I am still not satisfied. That is why I will not put more work on it (no assembly guide, but it is pretty straightforward anyway). The dark part in the handle is the ''parking'', serving as drop safety and to allow the percussion pin to retract in order to not collide with the cylinder rotation (sledge going back to initial position).
Don't test without a steel breech plate. You can easily send a dxf file to buy laser cut parts on internet.
It was intended for women self-defense too, but the force required to press the trigger is a little too high for my taste due to the parking and its spring parts. It is a little too big to fit in a pocket too. Fosscad is hard when you don't have access to ammo, powder and such...
PS : Cannot post on Reddit anymore, and the other forum are a mess for me, even though I admire the creators. Next objective is to design something better for self-defense (compact, rugged, easy to use). If you want, we can work together.
LBRY Tags: fosscad; 3d2a; no firearm parts; barrel liner; pepperbox
This release is pertains to a style of ammunition that is explicitly designed to be very low-pressure and not run any powder.
Loading a full-power cartridge of similar or identical dimensions is very likely to cause catastrophic malfunction. Tread carefully.
This release uses a commercially-available barrel liner. Liners can often be ECM'd, but this release was not put out with 100% DIY barrels in mind.
The barrel's DIY'd.
This release either contains or is a DIY bolt -- the part that takes the pressure when firing the cartridge. Not to be confused with the bolt carrier.
This release either contains or is an entirely DIY fire control system.
Note: just because you can drop a CSGCG or whatever into most AR designs doesn't mean they get this tag. This means there's a DIY FCG included in the bundle.
Guns that take absolutely no off-the-shelf firearm parts. The creme de la creme.
Guns that are designed to be fired from one or both hands without any additional points of contact.
